Dynamic Field Formatting in Tableau – Method 2

Blog | October 9, 2023 | By Abhishek Palakurthi

Introduction to Dynamic Field Formatting

Enhancing Data Visualization with Dynamic Formatting

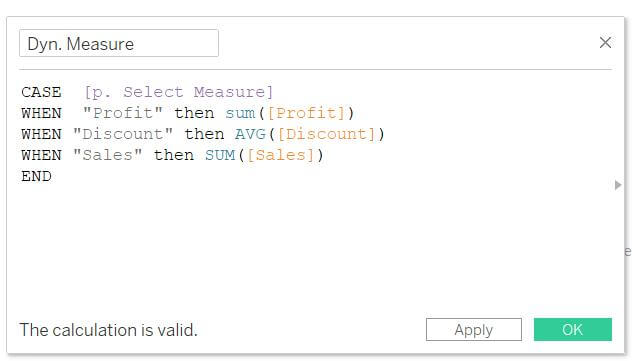

A rather frequent requirement when building dashboards in Tableau is the facility to swap measures in a chart. This can be fulfilled simply by using a calculation like the one below that returns a measure based on a parameter selection:

CASE [p. Select Measure]

WHEN "Profit" then SUM([Profit])

WHEN "Discount" then AVG([Discount])

WHEN "Sales" then SUM([Sales])

END

The Challenge of Dynamic Chart Measures

The challenge is that each of the above measures will likely need different formatting. For example:

  • Profit – displayed in thousands with a $ prefix and two decimal places
  • Discount – displayed as a percentage with a % suffix and one decimal place
  • Sales – displayed in thousands with a $ prefix and two decimal places

Adapting Formatting to Parameter Selections

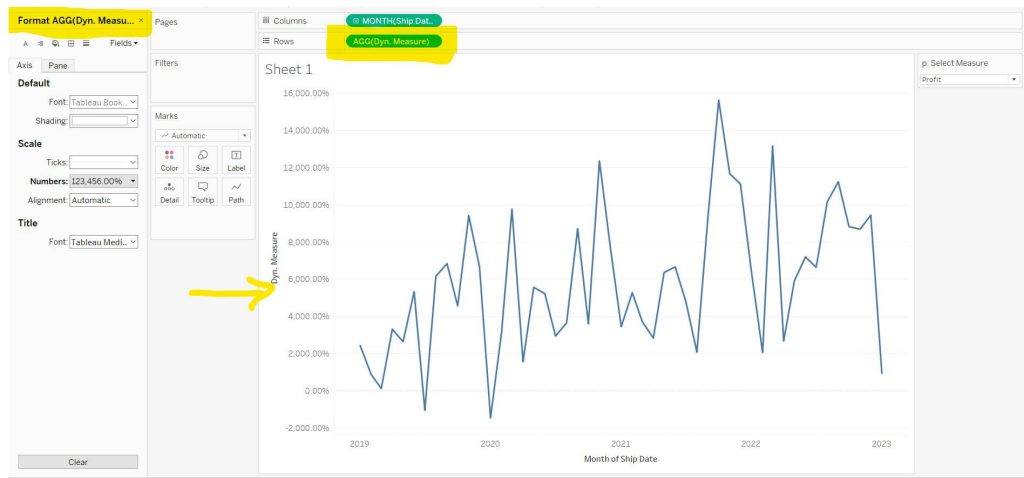

While formatting can be applied to this dynamic measure, it cannot be dynamically updated based on the parameter selection. So ‘Discount’ could end up formatted as a $ amount or your ‘Profit’ formatted as a very large percentage as shown below:

(Continuation to Method 1 from my previous Blog)

Method 2 – Add a format field option in the formatting panel

Creating Dynamic Field Formatting with Calculated Fields

Changing Formatting Dynamically with Parameters

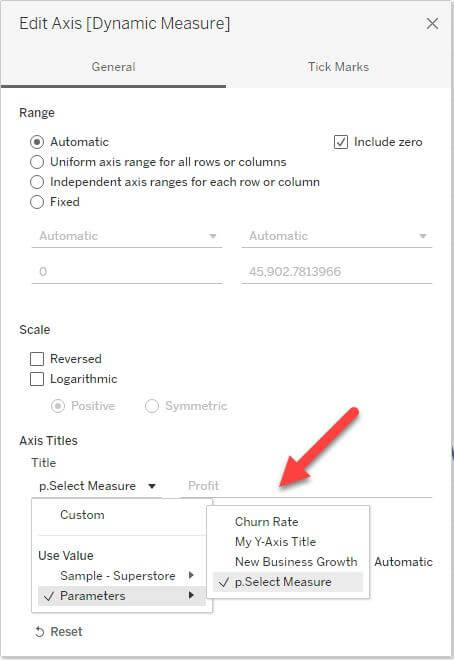

Tableau recently added the ability to create dynamic axis titles by using the value of a parameter or calculated field.

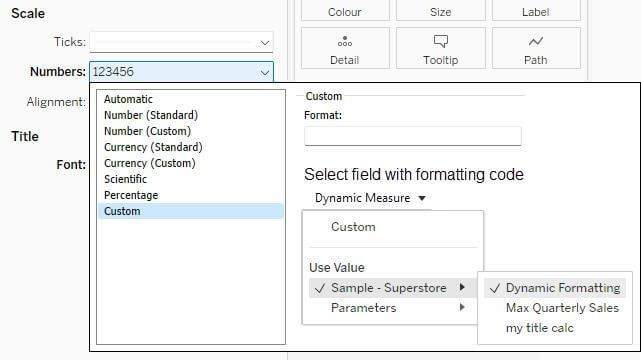

A similar approach could be used for field formatting. Currently, custom formatting can be applied to fields using formatting strings. In addition to typing these codes in, they could also be sourced from a calculated field or parameter with a UI like that used for dynamic axis titles.

A calculated field, e.g. [Dynamic Formatting] could then be used to format our dynamic measure seen earlier. This formatting calculation might look like this:

CASE [p.Select Measure]
WHEN "Profit" THEN "$ #,0,.0K"
WHEN "Discount" THEN "0.0%"
ELSE "0"
END

This also opens the option to dynamically change the formatting by updating the Dynamic Formatting calculation with a parameter if needed.

Stay tuned for Method 3 in my next blog post.
